Automatic EPS mold molding machine
Main features

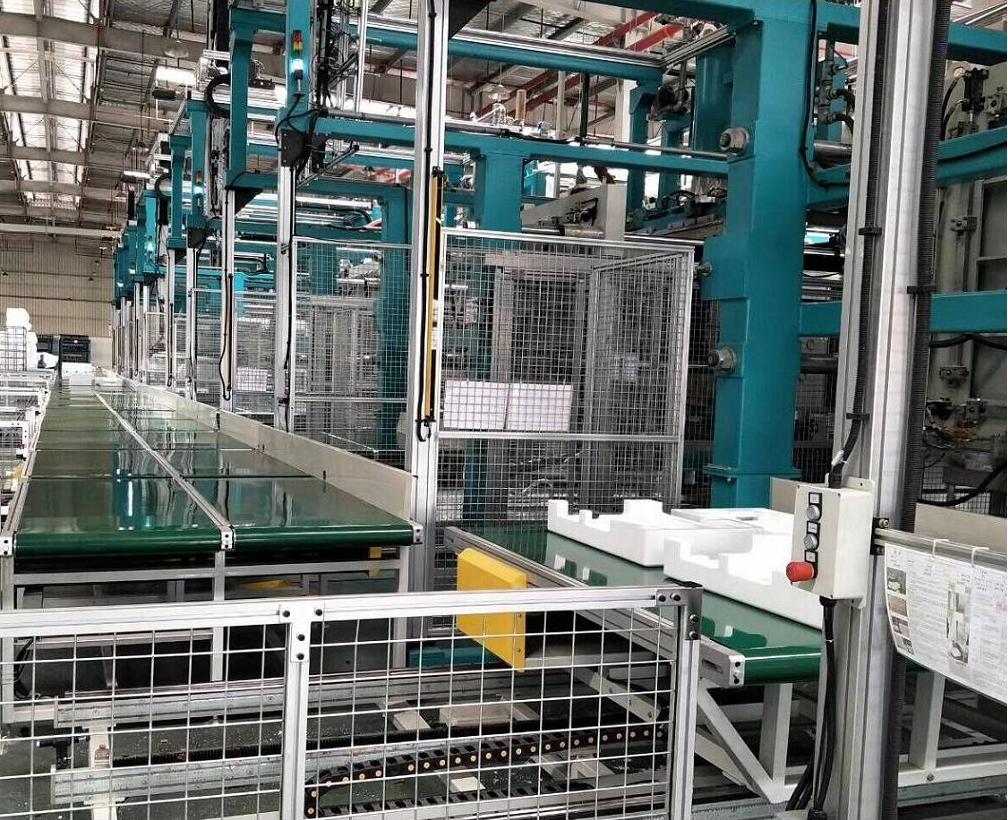

EPS automatic molding machine with robot
Technical Data
| Machine model. | Unit | K79H | K810H | K1214H | K1417H |
| Die size | mm | 700*900 | 800*1000 | 1200*1400 | 1400*1700 |
| Maximum product size | mm | 600*800*350 | 700*900*350 | 1100*1300*350 | 1300*1600*350 |
| Maximum opening stroke | mm | 1250 | 1250 | 1250 | 1250 |
| Maximum steam pressure | bar | 6 | 6 | 6 | 6 |
| Closing force | KN | 126 | 160 | 336 | 476 |
| Hydraulic drive: equipped with two-stage pump. | YES | YES | YES | YES | |
| Fill the fuel injector when filling the device | 1*16 | 1*16 | 1*25 | 2*16 | |
| interface | 10inch Siemens HMI | 10inch Siemens HMI | 10inch Siemens HMI | 10inch Siemens HMI | |
| Hydraulic motor | kw | 4 | 5 | 5.5 | 7.5 |
| Vacuum pump | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Connecting material | inch | R2”/DN50 | R2”/DN50 | R2”/DN50 | R2”/DN50 |
| Steam connection | mm | R3”/DN80 | R3”/DN80 | R4”/DN100 | R5”/DN125 |
| Compressed air connection | inch | R2”/DN50 | R2”/DN50 | R2”/DN50 | R2”/DN50 |
| Water connection | mm | R2-1/2”/DN65 | R2-1/2”/DN65 | R2-1/2”/DN65 | R2-1/2”/DN65 |
| Condensation connection | mm | R1”/DN25 | R1”/DN25 | R1”/DN25 | R1”/DN25 |
| Condensate outlet connection | mm | R4”/DN100 | R4”/DN100 | R4”/DN100 | R4”/DN100 |
