EPS block mold machine
Main features

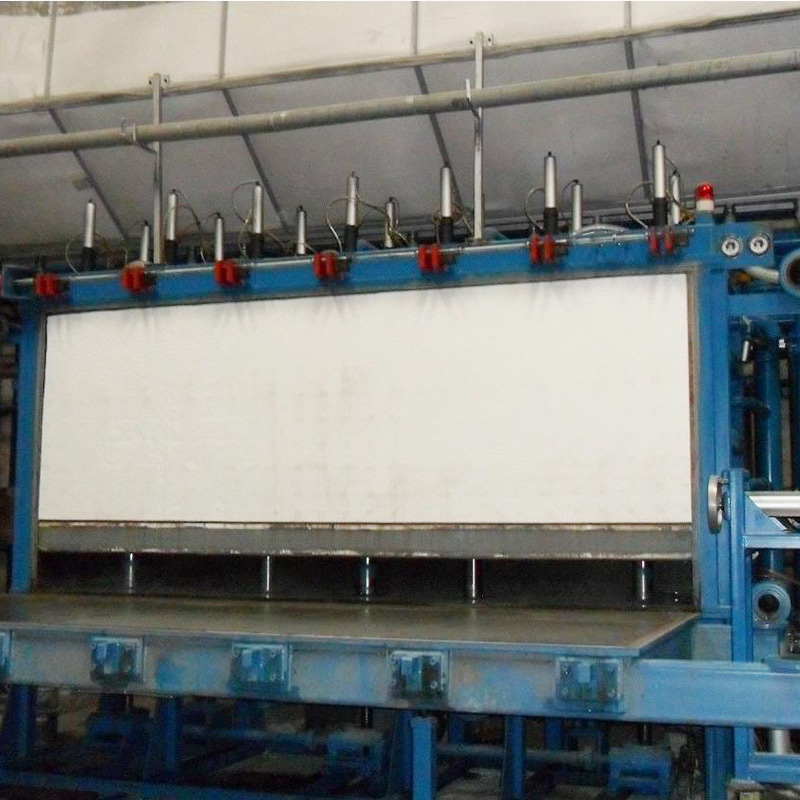

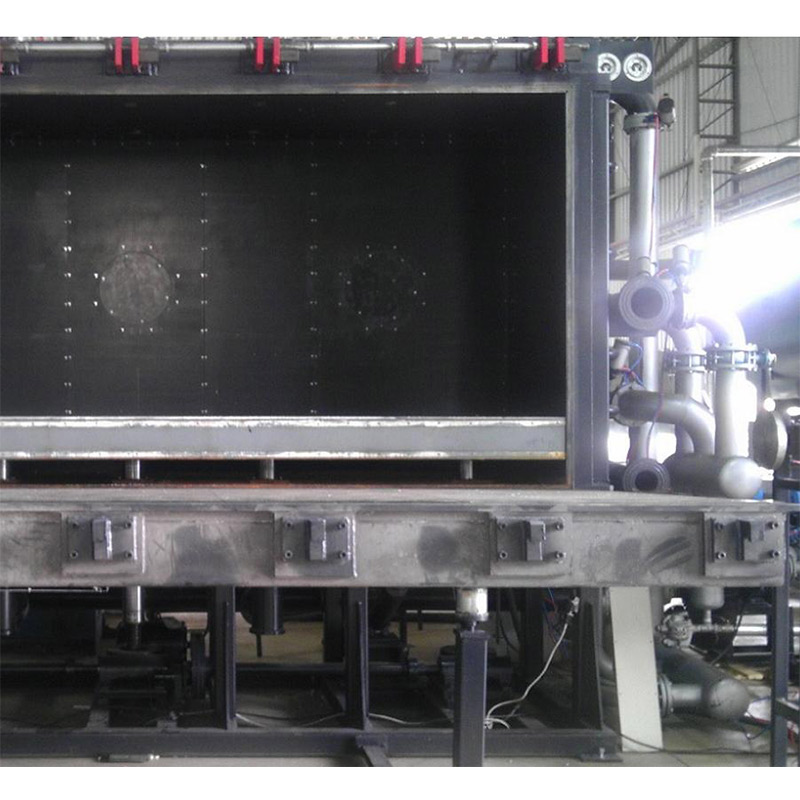

Block forming machine with adjustable height
On the basis of the modular molding machine, the raised floor is embedded in the mold that controls the HMI and PLC. Different block heights between 950 mm and 1200 mm can be achieved to meet different requirements and reduce cutting waste. The design of three steam chambers (patented) helps to reduce steam consumption.
(According to customer requirements, two vacuum or air coolers are provided).
Technical Data
| Eets | BM/R2000/DZBM/R2000/DF | BM/R3000/DZBM/R3000/DF | BM/R4000/DZBM/R4000/DF | BM/R6000/DZBM/R6000/DF | |||||
| Mold cavity size | mm | 2040×(1240-940)×1030 | 2040×(1240-940)×630 | 3060×(1240-940)×1030 | 3060×(1240-940)×630 | 4080×(1240-940)×1030 | 4080×(1240-940)×630 | 6100×(1240-940)×1030 | 6100×(1240-940)×630 |
| Brochtamano | mm | 2000×(1200-900)×1000 | 2000×(1200-900)×600 | 3000×(1200-900)×1000 | 3000×(1200-900)×600 | 4000×(1200-900)×1000 | 4000×(1200-900)×600 | 6000×(1200-900)×1000 | 6000×(1200-900)×600 |
| steam | Enter tumor | DN65 | DN65 | DN65 | DN65 | DN100 | DN100 | DN100 | DN100 |
| 30-50kg/ciclo | 20-30kg/ciclo | 50-70kg/ciclo | 30-40kg/ciclo | 60-90kg/ciclo | 45-55kg/ciclo | 100-130kg/ciclo | 60-70kg/ciclo | ||
| 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | ||
| compressed air | Enter tumor | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| 1.5-2m³/ciclo | 1-1.5m³/ciclo | 1.8-2.2m³/ciclo | 1.5-1.8m³/ciclo | 2-2.5m³/ciclo | 1.8-2m³/ciclo | 2-3m³/ciclo | 2-3m³/ciclo | ||
| 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | ||
| cooling water | Entry pressure | DN50 | DN50 | DN50 | DN50 | ||||
| 0.4m³/ciclo | 0.6m³/ciclo | 0.6m³/ciclo | 0.6-1m³/ciclo | ||||||
| 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | ||||||
| drainage | Vacuum drainage | Φ125mm | Φ125mm | Φ125mm | Φ125mm | ||||
| Steam ventilation | Φ100mm | Φ100mm | Φ100mm | Φ125mm | Φ200mm | Φ200mm | Φ200mm | Φ200mm | |
| Condensation Φ 100mm | |||||||||
| Blower outlet | Φ125mm | Φ125mm | Φ125mm | Φ125mm | Φ150mm | Φ150mm | Φ150mm | Φ150mm | |
| performance | 15kg/m³ | 5min/ciclo | 12min/ciclo | 6min/ciclo | 15min/ciclo | 7min/ciclo | 18min/ciclo | 8min/ciclo | 18min/ciclo |
| Connected load, kW | 20.5-24.5 | 9.5 | 20.5-24.5 | 9.5 | 24.5-35.5 | 13 | 24.5-35.5 | 13 | |
| Global dimensions | mm | 5700×4000×2850 | 4000×2150×2120 | 7200×4500×3000 | 5030×2270×2120 | 11000×4500×3000 | 6040×2270×2250 | 12600×3960×2906 | 8100×2500×3100 |
| weight | ton | 7 | 7 | 8.5 | 8.5 | 13.8 | 13.8 | 17 | 17 |
| Required room height: 6 meters | |||||||||
